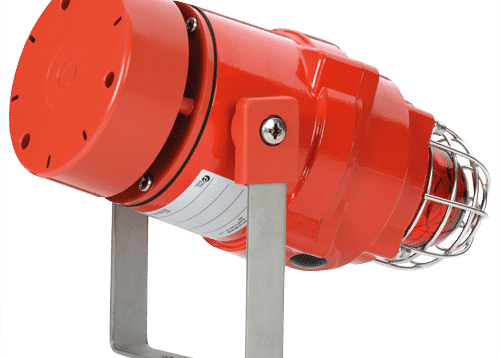

BEx – Combination signals

The BEx combination signals offer a dual signal from one installation point enabling the most cost-effective way to produce a warning signal in the protected area.

The Xenon or L.E.D. beacons can be combined with an alarm horn sounder either employing a traditional flare horn design, or the more compact radial horn design which distributes sound omni-directionally and enables the beacon to be oriented optimally in any direction.

Downloads

Beschrijving

The BEx combination signals offer a dual signal from one installation point enabling the most cost-effective way to produce a warning signal in the protected area.

The Xenon or L.E.D. beacons can be combined with an alarm horn sounder either employing a traditional flare horn design, or the more compact radial horn design which distributes sound omni-directionally and enables the beacon to be oriented optimally in any direction.

Extra informatie

Explosieveilig (Ex)

Nee

Beknopte specificaties

  • Material: Corrosion proof, marine grade copper free LM6 aluminium, chromated and powder coated.
  • Fixings: Stainless steel.
  • Mounting: Ratchet adjustable stainless steel ‘U’ bracket.
  • Cable entries: Dual M20 ISO. One stopping plug included.

Technische specificaties

Electrical Supply 12/24/48Vdc & 115/230Vac – Xenon Strobes
Electrical Supply 10-50Vdc & 115/230Vac – LED Beacons
Ingress Protection Ex d IP67, Ex de IP66

Goedgekeurd voor

  • II 2G Ex d IIB T4 – Zone 1 & 2
  • II 2G Ex d IIB T4, II 2D Ex tD A21
  • – Zone 1, 2, 21 & 22
  • ATEX, IECEx, EAC Ex
