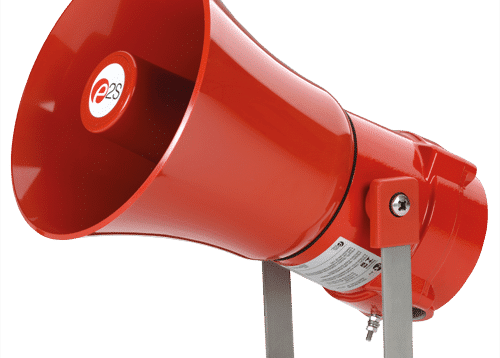

BEx – Omnidirectional Alarm Horns

The powerful BEx Omnidirectional alarm horn sounders are available with traditional flare horn design or radial horn design which distributes the warning signal omni-directionally in a compact form.

All versions offer 32 different first stage alarm sounds which can be selected via an internal switch. Each tone one can be remotely triggered to change to a second or third stage alarm sound.

For installations requiring defined safety integrity levels the BExS110 is available in a SIL 2 compliant version.

The BExTS110 telephone initiated version has a ring-tone circuit that senses the ringing voltage on the telephone line and swtiches the supply onto signal until the telephone is answered. The sound can be continuous or it can follow the telephone ring.

Downloads

Beschrijving

The powerful BEx Omnidirectional alarm horn sounders are available with traditional flare horn design or radial horn design which distributes the warning signal omni-directionally in a compact form.

All versions offer 32 different first stage alarm sounds which can be selected via an internal switch. Each tone one can be remotely triggered to change to a second or third stage alarm sound.

For installations requiring defined safety integrity levels the BExS110 is available in a SIL 2 compliant version.

The BExTS110 telephone initiated version has a ring-tone circuit that senses the ringing voltage on the telephone line and swtiches the supply onto signal until the telephone is answered. The sound can be continuous or it can follow the telephone ring.

Extra informatie

Explosieveilig (Ex)

Nee

Beknopte specificaties

  • Material: Corrosion proof, marine grade copper free LM6 aluminium, chromated and powder coated.
  • Fixings: Stainless steel.
  • Mounting: Ratchet adjustable stainless steel ‘U’ bracket.
  • Cable entries: Dual M20 ISO. One stopping plug included.

Technische specificaties

Electrical Supply 12/24/48Vdc & 115/230Vac 50/60HZ.
Ingress Protection Ex d IP67, Ex de IP66

Goedgekeurd voor

  • II 2G Ex d IIC T4 – Zone 1 & 2
  • II 2G Ex de IIC T4 – Zone 1 & 2
  • II 2G Ex d IIC T4, II 2D Ex tD A21 – Zone 1, 2, 21 & 22
  • II 2G Ex de IIC T4, II 2D Ex tD A21 – Zone 1, 2, 21 & 22
  • ATEX, IECEx, INMETRO, EAC Ex, VdS, MED
