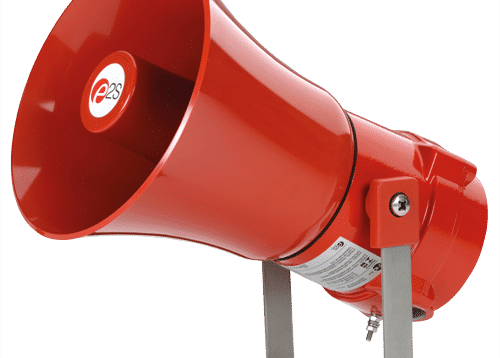

BEx – PA Loudspeakers

There are four versions of each BEx PA loudspeaker, 8 ohm or 16 ohm and 70V or 100V Line transformer.

On 70V and 100V line transformer units there are multiple tappings for each version of loudspeaker. The BExL25D unit produces output levels in the 117dB(A) range and the BExL15D unit produces output levels in the 112dB(A) range.

Downloads

Beschrijving

There are four versions of each BEx PA loudspeaker, 8 ohm or 16 ohm and 70V or 100V Line transformer.

On 70V and 100V line transformer units there are multiple tappings for each version of loudspeaker. The BExL25D unit produces output levels in the 117dB(A) range and the BExL15D unit produces output levels in the 112dB(A) range.

Extra informatie

Explosieveilig (Ex)

Nee

Beknopte specificaties

  • Material: Corrosion proof, marine grade copper free LM6 aluminium, chromated and powder coated.
  • Fixings: Stainless steel.
  • Mounting: Ratchet adjustable stainless steel ‘U’ bracket.
  • Cable entries: Dual M20 ISO. One stopping plug included.

Technische specificaties

Electrical Supply 12/24/48Vdc & 115/230Vac 50/60HZ.
Ingress Protection Ex d IP67, Ex de IP66

Goedgekeurd voor

  • II 2G Ex d IIC T4 – Zone 1 & 2
  • II 2G Ex de IIC T4 – Zone 1 & 2
  • II 2G Ex d IIC T4, II 2D Ex tD A21 – Zone 1, 2, 21 & 22
  • II 2G Ex de IIC T4, II 2D Ex tD A21 – Zone 1, 2, 21 & 22
  • ATEX, IECEx, INMETRO, EAC Ex

Vraag prijs-levertijden aan van dit product
