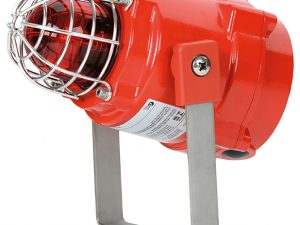

 BEx – Explosion and flameproof

The BEx explosion and flameproof beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible.

The BExBG range includes 5, 10, 15 and 21 Joule Xenon strobe beacons. The 21 Joule version has three distinct user selectable flash patterns and for units with DC operating voltages a second stage flash pattern can be selected remotely. The BExBGL1 multi-function L.E.D. beacon features a total of 9 modes of operation: 4 rotating effect modes, 4 flashing modes and a steady mode for use in indicator / status applications. Based on the mode selected the user can also selecttwo alternative L.E.D. modes remotely.

All versions feature a stainless steel guard, stainless steel mounting bracket and stopping plug as standard. All models have dual M20 cable entries, large termination areas and an ingress protection level of up to IP67.

Downloads

Beschrijving

The BEx explosion and flameproof beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible.

The BExBG range includes 5, 10, 15 and 21 Joule Xenon strobe beacons. The 21 Joule version has three distinct user selectable flash patterns and for units with DC operating voltages a second stage flash pattern can be selected remotely. The BExBGL1 multi-function L.E.D. beacon features a total of 9 modes of operation: 4 rotating effect modes, 4 flashing modes and a steady mode for use in indicator / status applications. Based on the mode selected the user can also selecttwo alternative L.E.D. modes remotely.

All versions feature a stainless steel guard, stainless steel mounting bracket and stopping plug as standard. All models have dual M20 cable entries, large termination areas and an ingress protection level of up to IP67.

Extra informatie

Explosieveilig (Ex)

Ja

Beknopte specificaties

  • Material: Corrosion proof, marine grade copper free LM6 aluminium, chromated and powder coated.
  • Fixings: Stainless steel.
  • Mounting: Ratchet adjustable stainless steel ‘U’ bracket.
  • Cable entries: Dual M20 ISO. One stopping plug included.

Technische specificaties

Ingress Protection Ex d IP67 – Ex de IP66

Goedgekeurd voor

  • II 2G Ex d IIC T6-T3 – Zone 1 & 2
  • II 2G Ex de IIC T5-T4 – Zone 1 & 2
  • II 2D Ex tD A21 – Zone 1, 2, 21 & 22
  • ATEX, IECEx, INMETRO, EAC Ex
